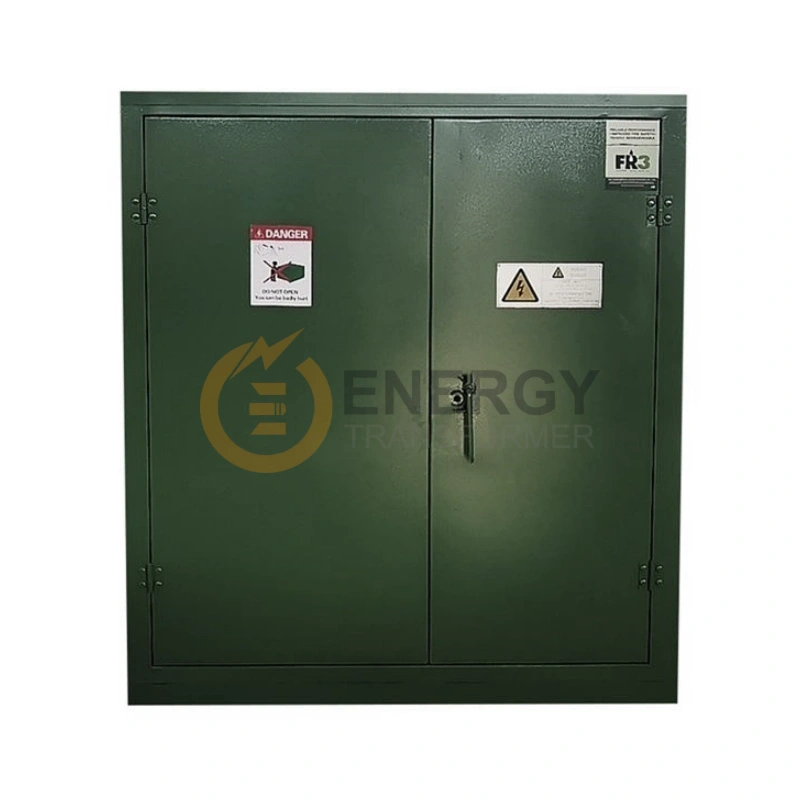

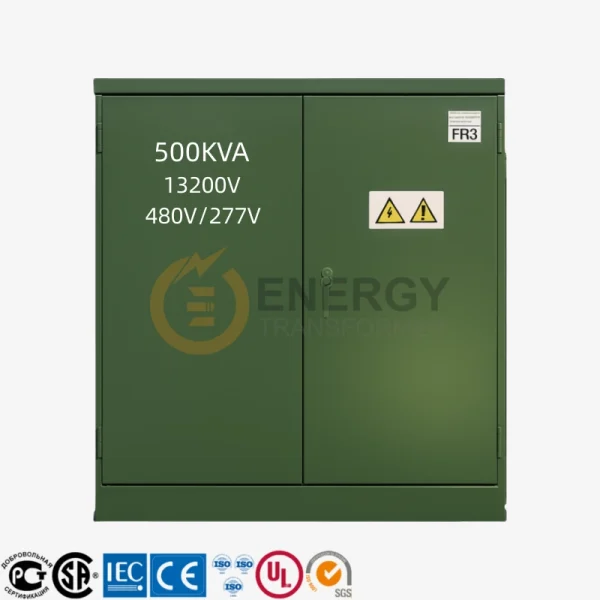

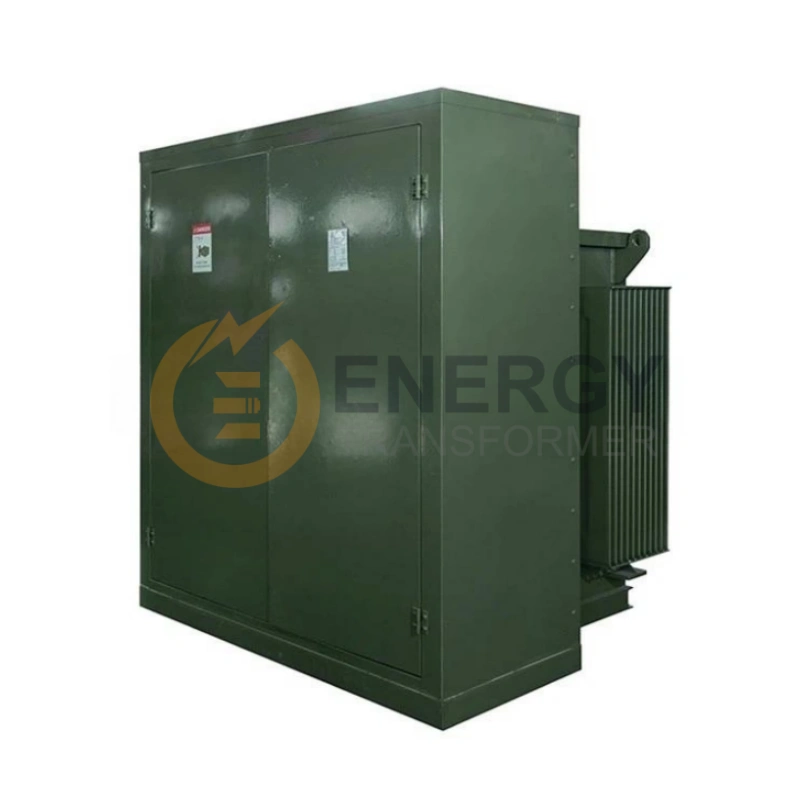

500 KVA Pad Mounted Transformer Features
This 500 kVA three phase pad mounted transformer features a 13.2 kV Delta-connected primary and a 480Y/277 V grounded Wye secondary, making it ideal for utility, commercial, and industrial power distribution systems. Built with high-efficiency silicon steel cores and insulated with mineral oil, the unit ensures reduced losses and reliable thermal performance with a 65°C temperature rise. Housed in a tamper-resistant NEMA Type 3R enclosure, it supports both indoor and outdoor installation, meeting ANSI, IEEE, UL, CSA, and DOE standards for safe, efficient voltage step-down applications.
500 KVA Pad Mounted Transformer Technical Specs
| Rated Power | 500 kVA | Sound Level | ≤ 55 dB (measured at 1 meter) |
|---|---|---|---|
| Phase | Three Phase | Taps | ±2 x 2.5% (on-load or off-load tap changer optional) |
| Primary Voltage | 13.2 kV (Delta) | Enclosure Type | Pad-Mounted, Tamper-Proof, Dead-Front or Live-Front |
| Secondary Voltage | 480Y/277 V | Enclosure Material | Heavy-gauge sheet steel with powder-coated finish |
| Frequency | 60 Hz | Ingress Protection | NEMA 3R Equivalent / ANSI C57.12.34 Compliant |
| Cooling Method | ONAN (Oil Natural Air Natural) | Ambient Temperature | -40°C to +50°C operating range |
| Dielectric Fluid | Biodegradable, non-toxic, fire-resistant fluid | Altitude | ≤ 1000 m (de-rating required above 1000 m) |
| Temperature Rise | 65°C | Standards Compliance | ANSI C57.12.00, ANSI C57.12.34, IEEE, DOE, CSA |
| Impedance | ~5.75% (±7.5%) | Optional Accessories | Bayonet fuses, pressure relief valve, drain valve, thermometer, liquid level gauge, etc. |
| Winding Material | Aluminum or Copper (customizable) | Weight (approx.) | ~2,200 kg (depends on configuration) |
| Efficiency Standard | Meets DOE 2016 / CSA C802.1 Efficiency Requirements | Dimensions (L×W×H) | Approx. 1750 × 1350 × 1400 mm (customizable) |
500 kVA Pad Mounted Transformer Dimensions
The dimensions of a 500 kVA pad mounted transformer are crucial for planning space in urban distribution systems, industrial installations, and utility networks. Typically, these units measure around 1700 mm (L) × 1500 mm (W) × 1500 mm (H), but dimensions can vary based on configuration and accessories. Energy Transformer, one of China’s top transformer manufacturers, offers custom-built pad mounted solutions that comply with CE, UL, CSA, and GOST standards. Designed and built in our 900-acre factory, these compact units are engineered to meet installation requirements in the U.S., Canada, Spain, and across Latin America.
500 kVA Pad Mount Transformer Cost
Understanding the cost of a 500 kVA pad mount transformer involves looking beyond the base price. Factors like oil type, core materials, winding technology, and certification impact the total cost. At Energy Transformer, we deliver factory-direct pricing backed by large-scale production efficiency. Our competitive costs don’t compromise quality — every transformer is tested for global reliability. With a robust export footprint across North and South America, including Argentina, Brazil, and Mexico, we provide excellent value for medium-voltage power distribution solutions.
500 kVA Pad Mount Transformer Price
While “cost” refers to the overall investment, the “price” of a 500 kVA pad mount transformer often denotes market rates for standard units. Prices can vary based on design (radial or loop feed), voltage class (e.g., 13.2 kV to 480Y/277V), and regional regulations. Energy Transformer offers transparent pricing models and customized quotes based on client specifications. As a certified manufacturer serving international markets, our products are trusted by electrical contractors, developers, and utilities in the U.S., Canada, Spain, and Brazil.
500 kVA Pad Mount Transformer Weight
Weight is a key factor when transporting, lifting, or placing pad-mounted transformers, especially in infrastructure or renewable energy projects. The typical weight of a 500 kVA pad mount transformer ranges between 1700 to 2200 kilograms depending on materials used (copper vs. aluminum windings), enclosure type, and accessories. Energy Transformer ensures an ideal balance between performance and portability. Built in our state-of-the-art Chinese facility, each transformer is optimized for long service life and easy deployment across diverse terrains in North and South America.
500 kVA Pad Mount Transformer Manufacturer
Energy Transformer is a leading OEM and wholesale manufacturer of pad mounted transformers with over 30 years of engineering expertise. With a massive 900-acre production base and global certifications (CE, UL, CSA, GOST), we provide high-quality, reliable, and customizable 500 kVA transformers for export to the U.S., Canada, Mexico, Argentina, Brazil, Guyana, Spain, and beyond. Our end-to-end manufacturing capabilities allow us to fulfill bulk orders quickly, with technical support and documentation tailored to international standards.
Why Choose Energy 500 KVA Pad Mounted Transformer
Energy Transformer’s 500 kVA three phase pad mounted transformer is a rugged, weatherproof, and tamper resistant solution ideal for commercial, industrial, and utility applications. Designed with a 13.2 kV Delta primary and a 480Y/277 V secondary, this transformer ensures reliable and efficient power distribution.

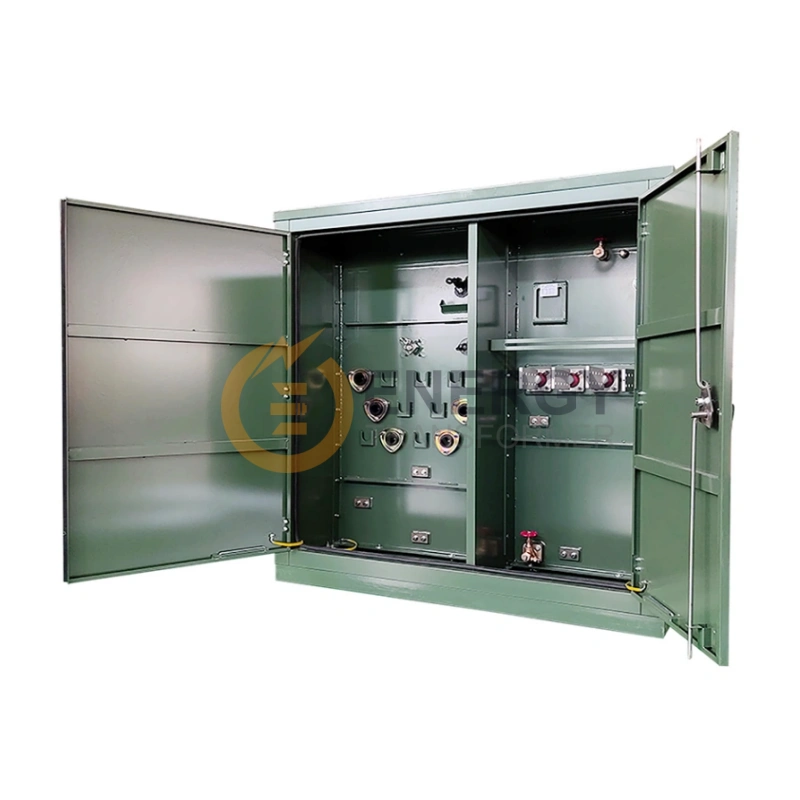

Built to be installed in public and accessible spaces, the transformer is enclosed in heavy-gauge sheet steel with a durable powder-coated, baked-on finish to resist corrosion and unauthorized access. Available in both live-front and dead-front configurations, and supporting radial or loop feed designs, this transformer offers installation flexibility to meet various system requirements.
Each unit is filled with environmentally friendly, biodegradable dielectric fluid that provides outstanding fire safety and extends operational life. This sustainable design not only enhances performance but also helps reduce environmental impact.
Key features include:
-
High Efficiency: Meets current energy efficiency standards for the U.S. and Canada, delivering significant long-term energy savings and reduced total cost of ownership.
-
Quiet Operation: Low noise levels suitable for residential, commercial, or urban environments.
-
Durability: Weatherproof and tamper-resistant enclosures ensure reliable operation in all climates.
-
Customizable: Available with aluminum or copper windings, and input/output voltages can be tailored to your specific project requirements.
-
Grid-Ready: Designed for easy integration with modern electrical distribution systems.
Whether you’re powering a shopping center, industrial facility, or municipal infrastructure, the 500 kVA pad-mounted transformer from Energy Transformer delivers robust performance, energy efficiency, and long-term reliability.
Contact us today for expert advice and tailored solutions for your transformer needs.
