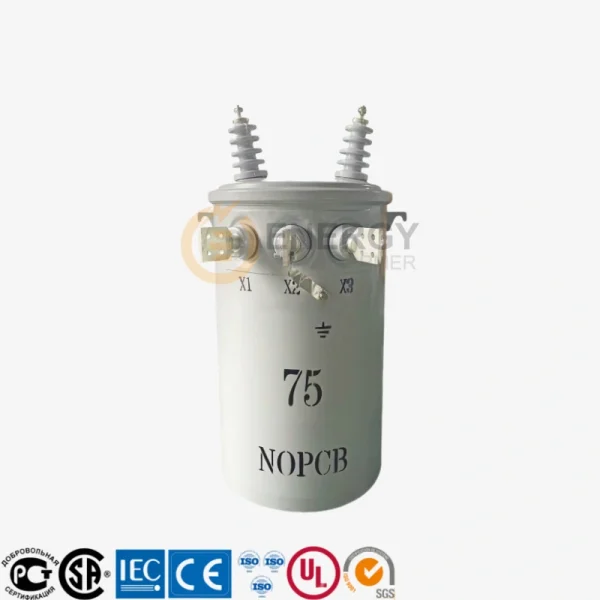

75 kVA Pole Mounted Transformer Features
This 75 kVA single-phase pole mounted transformer features a 13.2 kV primary and a 120/240 V split-phase secondary, ideal for residential, rural, and light commercial power distribution. Engineered with high-grade silicon steel cores and filled with mineral insulating oil, it offers excellent energy efficiency and reliable performance with a standard 65°C temperature rise. The transformer is housed in a corrosion-resistant, tamper-proof enclosure designed for outdoor pole installation, ensuring durability in harsh environments. Fully compliant with ANSI, IEEE, UL, CSA, CE, and DOE standards, it delivers safe and efficient voltage step-down solutions across utility networks and remote installations.
75 KVA Pole Mounted Transformer Technical Specs
| Rated Power | 75 kVA | Insulation Level | HV: Lightning Impulse 75 kV / AC 35 kV; LV: AC 3 kV |
|---|---|---|---|
| Application | Distribution Transformer – Outdoor Pole-Mounted | Temperature Rise Limits | Oil: 60 K; Winding: 65 K |
| Number of Phases | Three-phase | Ambient Temperature | -40°C to +45°C (altitude ≤ 1000m; high altitude versions available) |
| Frequency | 50 Hz / 60 Hz (customizable) | Protection Level | IP00 (optional IP20/IP23 enclosures) |
| High Voltage (HV) | 6 kV / 10 kV / 11 kV / 13.2 kV / 15 kV / 20 kV / 22 kV / 33 kV (optional) | Noise Level | ≤ 50 dB (measured at 1 meter) |
| Low Voltage (LV) | 0.208/0.120 kV, 0.240/0.120 kV (North America) | Installation Type | Pole-Mounted (Horizontal or Vertical mounting) |
| 0.220/0.127 kV, 0.380/0.220 kV (South America) | Cooling Medium | Mineral Oil / Silicone Oil / Natural Ester (IEC 60296 compliant) | |
| 0.4 kV (Europe, Asia, customizable) | Tank Construction | Corrugated steel or galvanized sheet; anti-corrosion coating optional | |
| Connection Group | Delta-Wye (Dyn11) / Wye-Wye (Yyn0) / Wye-Delta (Yd11) (as per customer requirement) | Paint / Finish | Outdoor-grade powder coating or galvanized finish |
| Vector Group Standard | IEC 60076 or GOST 11677 | Accessories | Lifting lugs, grounding terminal, drain valve, oil level indicator, thermometer |
| Cooling Type | ONAN (Oil Natural Air Natural) | Optional Accessories | Pressure relief valve, surge arrester, overload protection relay |
| Rated Impedance Voltage | 4% (standard) or customized | Applicable Standards | IEC 60076, ANSI C57, GOST 11677, GB/T 1094 |
| No-Load Loss | ≤ 140 W (as per IEC / GOST) | Certifications | CE, GOST, ISO9001, ISO14001, UL (on request) |
| Load Loss (at 75°C) | ≤ 1250 W | Expected Service Life | 25+ years under normal operating conditions |
| No-Load Current | ≤ 2.5% | Warranty | Standard 24 months (extended warranty available upon request) |
Custom 75 kVA Power Pole Mounted Transformer
The 75 kVA Power Pole Mounted Transformer from Energy Transformer offers dependable and efficient energy distribution across diverse applications in North America, South America, and Asia. Designed for overhead installations, these transformers are widely used in residential, rural, commercial, and light industrial settings. As a leading Chinese manufacturer, we deliver fully customized, certified, and factory-priced solutions to global clients including those in the U.S., Canada, Argentina, Brazil, the Philippines, and more.
75 kVA Power Pole Transformer Weight
The typical weight of a 75 kVA single-phase pole transformer ranges from 350 to 420 kg, depending on design specifics and customization needs. This weight ensures safe mounting on utility poles while offering excellent resistance to wind and environmental stress. Each unit is engineered for easy handling and installation, making it a top choice for quick deployments in areas with limited infrastructure.
75 kVA Telephone Pole Transformer Dimensions and Size
Our 75 kVA telephone pole transformers are built to be both compact and durable, with approximate dimensions of 900 mm in height and 650 mm in diameter. The cylindrical tank design fits most pole-mounting standards across North and South America, ensuring compatibility with grid infrastructure in countries like Mexico, Bolivia, and Guyana. Despite its small footprint, the transformer delivers powerful performance under demanding conditions.
Amperage Capacity of 75 kVA Telephone Pole Transformer
When stepping down from 13.2 kV to 120/240 V, the 75 kVA transformer delivers a current of approximately 625 A at 120 V or 312 A at 240 V, making it suitable for residential service drops, telecom relay stations, and small industrial equipment. This level of output ensures stable, continuous power delivery even in rural or underdeveloped grids across Panama, Argentina, and the Philippines.
75 kVA Power Pole Transformer Cost
At Energy Transformer, we offer cost-effective solutions by controlling the entire manufacturing process—from silicon steel lamination to tank fabrication. Our factory-direct pricing gives our clients in North America, South America, and Southeast Asia a significant cost advantage. With custom options and volume discounts, we help optimize your project budget without compromising on quality or performance.
75 kVA Step Down Electrical Pole Mounted Transformer Price
Looking for a step-down transformer that combines price and performance? Our 75 kVA units are engineered to step down voltage from 13.2 kV to 120/240 V efficiently and safely. With UL, CE, CSA, and CUL certifications, these units meet international safety standards. Our streamlined supply chain allows for fast delivery times and competitive pricing, especially for clients in Spain, Italy, and Indonesia.

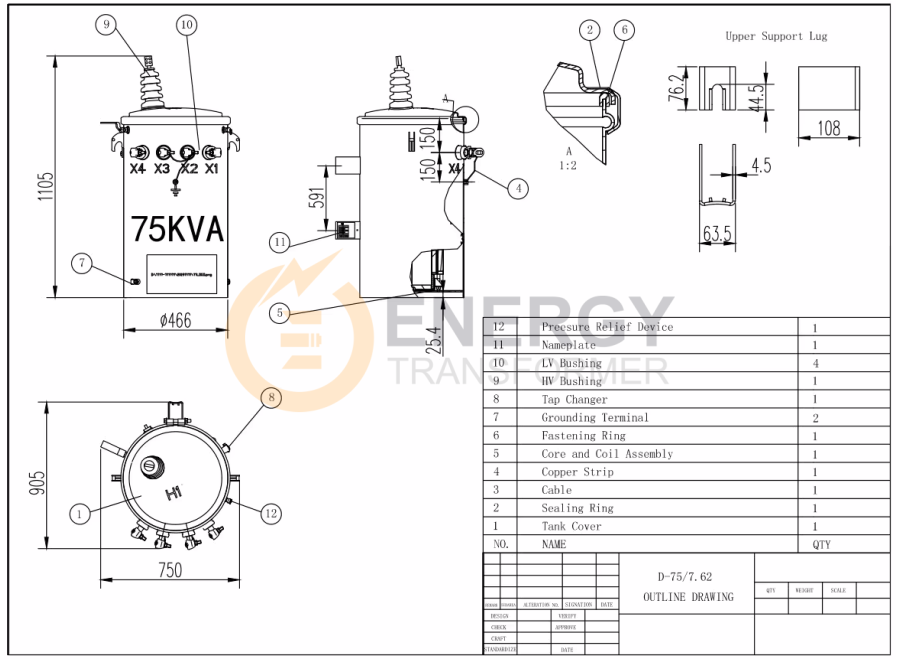

Drawings and Shipping Package of 75 kVA Telephone Pole Mounted Transformer
Why Choose 75 kVA Pole Mounted Transformers?
Energy Transformer’s 75 kVA Single Phase Pole Mounted Transformer is a high performance, space-saving solution designed for overhead distribution systems in residential, agricultural, and light commercial settings. With a 13.2 kV primary and a 120/240 V secondary, this model is ideal for stepping down medium voltage to service voltage levels efficiently and reliably.
Housed in a weatherproof, corrosion-resistant enclosure and mounted directly on utility poles, this transformer provides maximum durability and easy maintenance access in both urban and remote locations. It’s built to handle the power needs of North America, South America, Southeast Asia, and global markets, including the U.S., Canada, Argentina, Brazil, the Philippines, Guyana, and Bolivia.
Key Benefits:
✅ Compact & Lightweight Design
Its pole-mounted configuration minimizes land use and infrastructure cost, making it ideal for rural and distributed applications.
✅ Energy Efficient Performance
Built with low-loss silicon steel cores and high-quality windings, the 75 kVA unit complies with DOE, UL, CSA, CE, and CUL standards—delivering lower operating costs and long-term savings.
✅ Durability in Harsh Environments
Manufactured in our advanced Chinese factory using a full industry chain and premium materials, these transformers are built to endure extreme weather while maintaining safe, quiet, and efficient operation.
✅ Flexible Customization Options
Choose between aluminum or copper windings, custom primary/secondary voltage configurations, and accessories such as lightning arresters and fuses. Perfect for matching specific grid and project demands.
✅ Fast Delivery & Global Supply
Thanks to Energy Transformer’s large-scale production capabilities, we ensure rapid lead times, even for custom models. We support worldwide logistics to North and South America, Asia, and beyond.
✅ Factory Direct Cost Advantage
Our pole transformers are produced entirely in-house, from core cutting to final assembly—giving you low cost, factory-direct pricing, and uncompromising quality.
Whether you’re working on rural electrification, utility upgrades, or off-grid solar integration, Energy Transformer’s 75 kVA Pole Mounted Transformer is your trusted choice for reliable, customizable, and cost-effective power distribution.
📩 Contact us today for a custom quote or expert consultation tailored to your regional voltage and project requirements.
