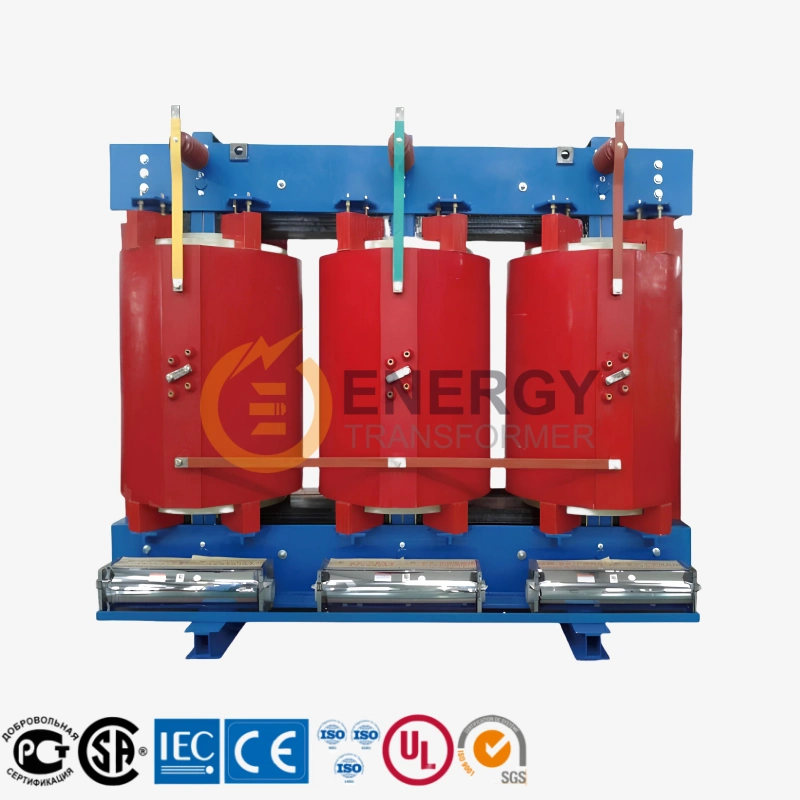

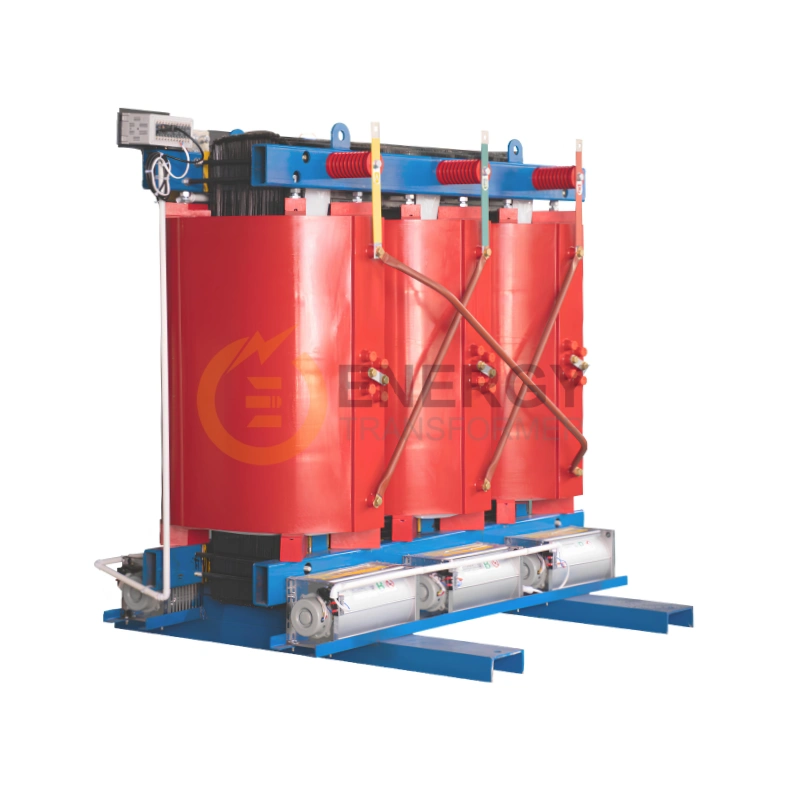

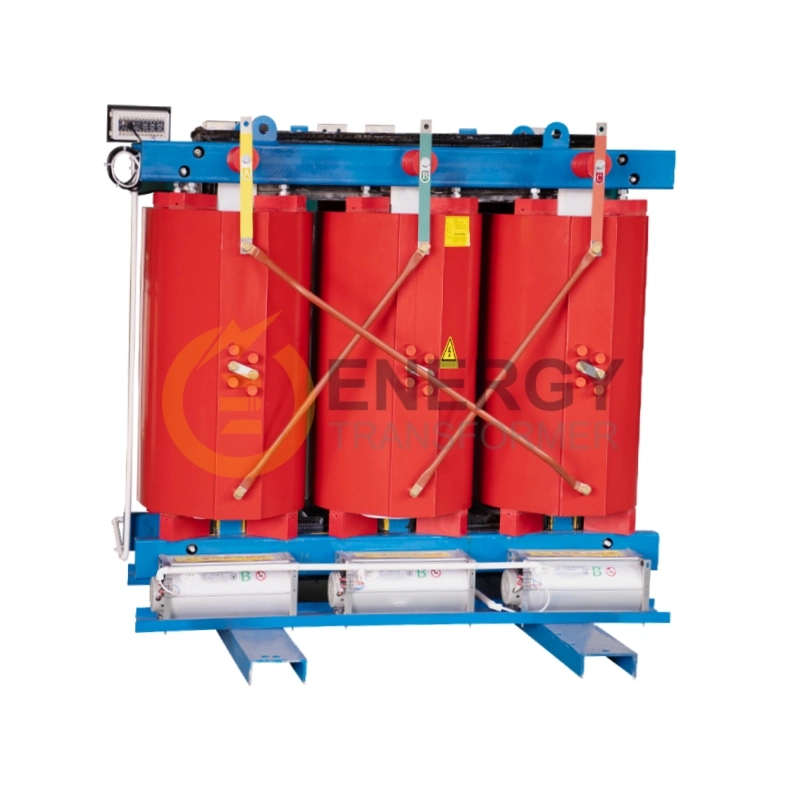

1000 kVA Cast Resin Transformer 13.8 kV to 480Y/277V Dry Type Distribution

1000 kVA Cast Resin Transformer 13.8 kV to 480Y/277V Features

The 1000 kVA Cast Resin Transformer is engineered for efficient and reliable power distribution in commercial, industrial, and utility applications. With a primary voltage of 13.8 kV and a secondary voltage of 480Y/277V, this cast resin transformer provides a safe and fire-resistant solution for both indoor and outdoor environments.

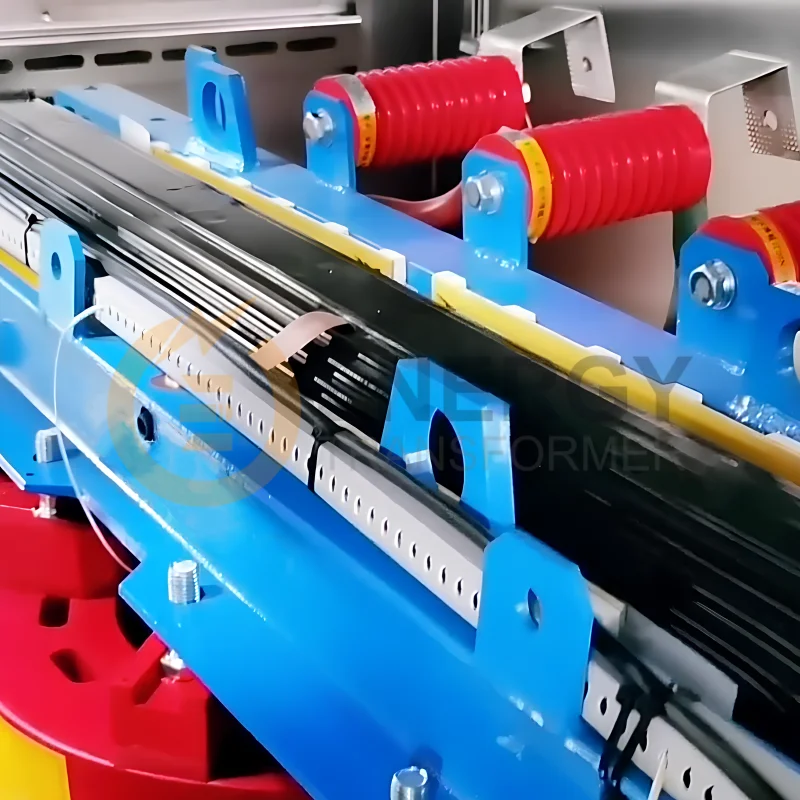

This cast resin transformer uses high-quality cast resin insulation that offers excellent resistance to fire, moisture, and pollution, making it ideal for harsh or sensitive installation sites. The magnetic core is made from premium grain-oriented silicon steel laminations, which reduce no-load losses, while the precision copper windings ensure low load losses and excellent thermal performance.

Designed with a durable, corrosion-resistant enclosure, the cast resin transformer requires minimal maintenance and delivers long-term reliability. It meets strict industry standards including ANSI, IEEE, UL, CSA, and CE, ensuring safe operation across North American and South American electrical grids.

Custom options for cooling methods, voltage taps, and mounting configurations are available to tailor the cast resin transformer to your project requirements. This transformer is widely used in utility distribution networks, renewable energy integration, commercial buildings, and industrial power systems.

Energy Transformer is a leading manufacturer and supplier of cast resin transformers, offering flexible production capabilities, ready stock inventory, and competitive factory-direct pricing. Our cast resin transformers are trusted by clients across key markets such as the USA, Canada, Mexico, Brazil, Argentina, Chile, Colombia, and Peru, serving EPC contractors, utilities, and industrial users throughout North and South America.

1000 kVA Cast Resin Transformer 13.8 kV to 480Y/277V Technical Specs

No.	Item	Specification	Remarks
1	Power Rating	1000 kVA	Customizable from 15 kVA up to 1500 kVA
2	Primary Voltage	13.8 kV (Delta connection)	Customizable up to 34.5 kV or higher
3	Secondary Voltage	480Y/277 V (Wye grounded neutral)	Other options: 120/240 V, 208Y/120 V, 600Y/347 V
4	Phase	Three-phase, 60 Hz	Single-phase and other configurations available
5	Insulation Type	Cast Resin	Oil-free, fire-resistant, environmentally friendly design
6	Insulation Class	Class F (155°C)	Optional Class H (180°C) and higher temperature ratings
7	Temperature Rise	115°C (standard)	Customizable for higher temperature rise
8	Cooling Method	Air Natural (AN), Air Forced (AF)	NEMA 3R rated for indoor/outdoor installation
9	Impedance Voltage	5% – 6.5%	Adjustable per project requirements
10	Short Circuit Withstand	30 to 60 seconds	Higher withstand times available on request
11	Voltage Taps	±2.5%, ±5%, 3-5 taps	Facilitates voltage regulation and system stability
12	Frequency	60 Hz	50 Hz versions available for export markets
13	Insulation Resistance	≥1000 MΩ	Ensures excellent insulation performance
14	Leakage Magnetic Flux	Low leakage design	Minimizes electromagnetic interference
15	Core Material	Cold-rolled grain-oriented silicon steel	High efficiency, low no-load losses
16	Winding Material	High-purity oxygen-free copper	Ensures high conductivity and thermal endurance
17	Enclosure Material	Heavy-duty cold-rolled steel	Corrosion resistant, dust and water protection
18	Protection Rating	NEMA 3R (Rain and dust resistant)	Customizable to NEMA 1, NEMA 12 for indoor applications
19	Operating Temperature Range	-20°C to 40°C	Extended ranges from -40°C to +50°C available
20	Humidity Adaptability	0% to 95%, non-condensing	Suitable for high humidity and damp environments
21	Noise Level	≤55 dB(A)	Low noise design suitable for urban and indoor use
22	Approximate Weight	1500–2000 kg	Varies with custom options
23	Dimensions (L x W x H)	Approx. 1500 x 1100 x 1700 mm	Custom dimensions available
24	Standards Compliance	ANSI C57.12, IEEE, UL, CSA, CE	Meets major North & South American market standards
25	Warranty	2 to 5 years	Extended warranty options available
26	Typical Applications	Commercial power distribution, industrial plants, renewable energy projects, substations	Ideal for solar, wind, manufacturing, and utility grids
27	Global Supply & Service	Worldwide shipping	Focus on North America (USA, Canada, Mexico) and South America (Brazil, Argentina, Chile, Colombia)

✅ 1000 kVA Cast Resin Transformer 13.8 kV to 480Y/277V Dry Type Distribution Overview

A 1000 kVA Cast Resin Dry Type Transformer rated for 13.8 kV primary and 480Y/277V secondary is widely used in commercial, industrial, utility, and institutional power distribution systems. ENERGY TRANSFORMER manufactures this eco-friendly, flame-retardant, low-maintenance transformer with high mechanical strength and Class F/H insulation. This unit is designed for indoor and outdoor use, with air natural (AN) or air forced (AF) cooling, and conforms to IEC 60076-11, ANSI/IEEE C57.12.91, UL1562, CSA, and CE standards.

✅ What Is a Cast Resin Transformer?

A Cast Resin Transformer is a type of dry-type transformer in which the windings are encapsulated in epoxy resin through a vacuum casting process. This encapsulation protects the windings from moisture, dust, and chemical contamination, enabling installation in high-humidity, polluted, or fire-sensitive areas without special fire safety precautions.

✅ What Is a Dry Type Cast Resin Distribution Transformer?

Dry-type cast resin distribution transformers are used to step down medium voltage (e.g., 13.8 kV) to low voltage (e.g., 480Y/277V) for safe distribution to end-user loads. These transformers eliminate the use of oil, providing enhanced fire safety and simplified maintenance. They are especially suitable for use in hospitals, airports, commercial buildings, tunnels, metro stations, and renewable energy plants.

✅ 1000 kVA Dry Type Cast Resin Transformer Dimensions

Dimensions may vary slightly depending on configuration. Typical data:

• Length: 2000–2300 mm

• Width: 1000–1200 mm

• Height: 1700–2000 mm

• Weight (Net): ~4000–4500 kg

ENERGY TRANSFORMER provides full layout drawings, lifting point details, and foundation bolt plans for seamless installation.

✅ 1000 kVA Dry Type Cast Resin Transformer Weight & Handling

• Transport Weight: ~4.5 to 5.2 tons (depending on enclosure)

• Lifting Points: Integrated on frame

• Mounting Options: Skid base, rail mount, or floor mount
  ENERGY TRANSFORMER ensures safe transport with reinforced packaging, hoisting instructions, and detailed user manuals.

✅ 1000 kVA Dry Type Cast Resin Transformer Price

The typical price range for a 1000 kVA 13.8 kV to 480Y/277V dry-type transformer is USD $11,500–$19,000, depending on conductor (copper/aluminum), vector group, accessories, and enclosure rating. ENERGY TRANSFORMER provides competitive pricing by in-house production of core, winding, and resin casting processes. EXW, FOB, and CIF options available.

✅ 1000 kVA Cast Resin Transformer Cooling Types

• AN (Air Natural): Standard natural air convection.

• AF (Air Forced): Forced air cooling for overload conditions.

• Dual Cooling Stages: Optional for fluctuating load profiles.

✅ 1000 kVA Dry Type Transformer Protection & Monitoring Options

• Digital temperature controller (PT100 or PTC sensors)

• Over-temperature alarm and trip

• Fan control unit (for AF type)

• Optional RS485 or Modbus RTU interface

• Surge arresters and enclosure grounding

✅ 1000 kVA Dry Type Cast Resin Transformer Types

• SCB10 Series: Standard type, copper windings, good price-performance ratio

• SCB11 Series: Low loss, improved energy efficiency

• SCB12 Series: Premium series with higher mechanical strength and lower noise

• K-Factor Rated Models: For non-linear and harmonic-rich loads

• Seismic-Proof Models: With anti-vibration and shock-resistant designs

• Outdoor Enclosed Models: With IP23/IP44/IP54 enclosures for outdoor installation

• Smart Monitoring Models: With IoT-enabled real-time monitoring and cloud interface

✅ 1000 kVA Cast Resin Transformer Vector Groups

Common vector group options:

• Dyn11: Widely used for step-down distribution systems

• Yyn0: Suitable for balanced load conditions

• Yd11 or Yz11: As per grid synchronization needs
  ENERGY TRANSFORMER supports custom vector group design per client specification and grid requirements.

✅ 1000 kVA Cast Resin Transformer Applications

• Commercial complexes

• Hospitals and medical campuses

• High-rise residential buildings

• Airports and metro stations

• Wind and solar power plants

• Chemical and manufacturing plants

• Data centers and telecom hubs

✅ Global Manufacturers of Cast Resin Dry Type Transformers

Leading international manufacturers of cast resin dry-type transformers include:

• Siemens Energy (Germany)

• Schneider Electric (France)

• ABB/Hitachi Energy (Switzerland/Japan)

• Legrand (France)

• ENERGY TRANSFORMER (China) – Reliable supplier with global presence, offering certified, cost-effective dry-type transformer solutions with fast delivery and OEM services.

✅ 1000 kVA Cast Resin Transformer Made in China

ENERGY TRANSFORMER’s 1000 kVA dry type transformers are proudly Made in China, with full quality control from core lamination to resin casting. All units are tested to meet international standards and are exported to the USA, Canada, Mexico, UAE, Vietnam, Brazil, and more than 40 other countries. We offer dual-language (EN/ES or EN/RU) documentation, quick lead times, and full technical support.

✅ Certifications and Quality Assurance

All ENERGY TRANSFORMER units conform to:

• IEC 60076-11

• ANSI/IEEE C57.12.01 / C57.12.91

• UL 1562 / CSA C22.2 No.47

• CE / UKCA / SASO / GOST (available on request)
  Routine, type, and special tests conducted per order. Third-party inspections by SGS, BV, or Intertek welcome.

✅ Nameplate and Technical Data for 1000 kVA Cast Resin Transformers

Each transformer includes:

• Manufacturer & serial number

• Rated kVA

• Input/output voltages and current

• Frequency, vector group

• Cooling type, insulation class

• Weight, dimensions, and losses

• Wiring diagram and terminal orientation

• QR code for digital documents and service record

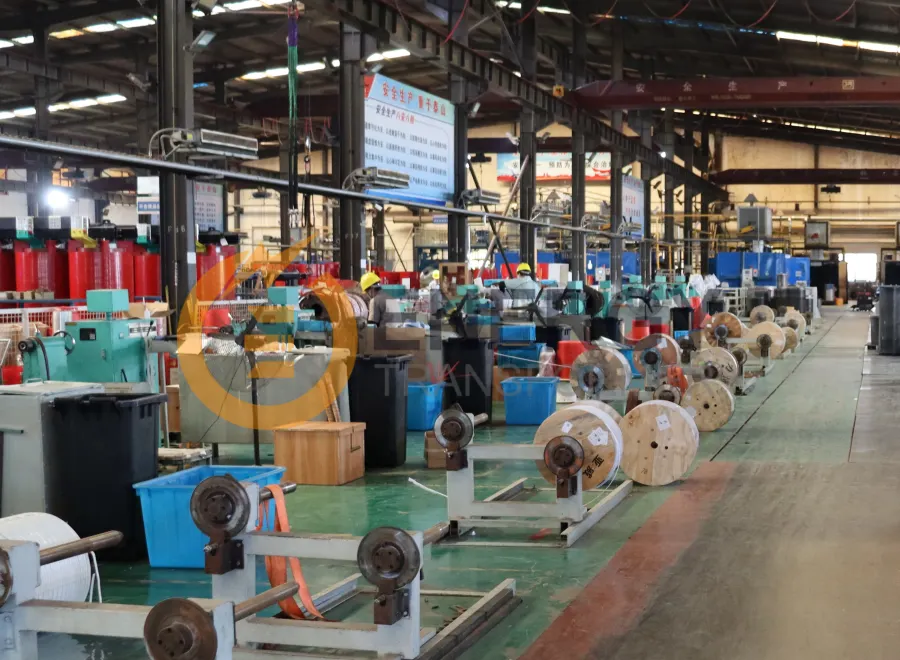

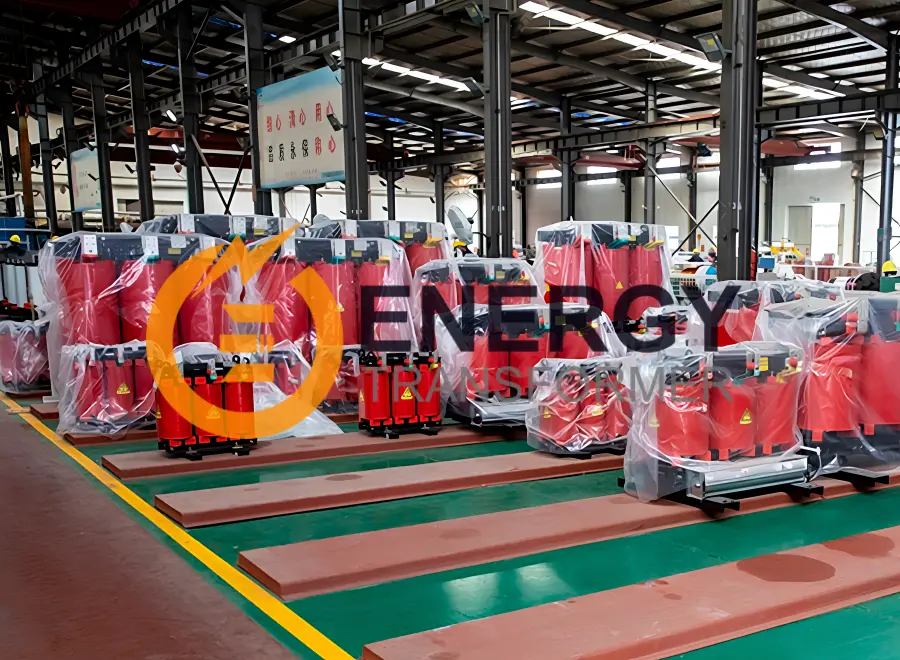

1000 kVA Cast Resin Transformer Production, Testing, Packaging & Worldwide Delivery

The 1000 kVA Cast Resin Transformer, rated 13.8 kV to 480Y/277V, is widely used in industrial plants, data centers, commercial buildings, and renewable energy systems. ENERGY TRANSFORMER offers a fully integrated factory process covering core manufacturing, coil casting, final assembly, testing, packaging, and international logistics. Built in ISO-certified facilities, these dry-type transformers meet UL, CE, CSA, and IEC standards for safety and performance.

Why Choose 1000 kVA Cast Resin Dry-Type Transformer (13.8 kV to 480Y/277V)?

Energy Transformer’s 1000 kVA cast resin dry-type transformer is purpose-built for safe, efficient, and eco-friendly power distribution in commercial, industrial, and institutional settings. With a primary voltage of 13.8 kV and a secondary output of 480Y/277V, it is ideal for low-voltage networks, critical facility power systems, and renewable energy integration.

✅ Fire-Safe & Eco-Friendly Design

Flame-retardant, self-extinguishing epoxy resin encapsulation eliminates fire hazards and oil leaks. Perfect for indoor installations, high-rise buildings, hospitals, and data centers.

✅ Durable for Harsh Environments

Moisture-resistant insulation and sealed windings ensure maintenance-free operation even in high humidity, dusty, or corrosive environments. Suitable for coastal, desert, or industrial zones.

✅ Standardized to Global Codes

Tested and certified to UL, CSA, IEC 60076-11, ANSI/IEEE, and CE standards. Compatible with USA, Canada, South America, Southeast Asia, and Middle Eastern grid systems.

✅ Compact, Quiet & Efficient

Low-loss silicon steel core and precision coil winding provide >98.5% efficiency and minimal electromagnetic noise. Natural air-cooled (AN) with optional forced-air ventilation (AF) for space-constrained applications.

✅ Flexible Configuration & Customization

Offered in open type or enclosed (IP23/IP54) formats. Optional temperature sensors, surge arresters, enclosure paint colors, and smart monitoring modules available. Vector group Dyn11 standard.

✅ Fast Production & Export Delivery

Typical lead time: 3–5 weeks. Packed for export and delivered worldwide via road, rail, sea, or air. Full EXW, FOB, CIF, or DDP options available.

📩 Contact Energy Transformer today for datasheets, product drawings, or a tailored quote for your 1000 kVA dry-type transformer needs.

✅ Factory-direct supply
✅ Certified for global use
✅ Proven reliability in over 70+ countries
