How Do Transformers Work?
Transformers are essential electrical devices that transfer energy between circuits by using electromagnetic induction. They work by converting voltage levels—either stepping up or stepping down—to ensure efficient and safe power distribution. Inside a transformer, an alternating current (AC) flowing through the primary coil generates a magnetic field, which induces a voltage in the secondary coil. This allows the transformer to adjust voltage levels without direct electrical contact between the coils.
This principle is widely used in power systems to transmit electricity over long distances efficiently. High voltage transmission reduces energy loss, and transformers at each end step the voltage down for safe use in homes and businesses. From powering large industrial systems to enabling common low-voltage household electronics like TVs, speakers, and appliances, transformers play a vital role in modern electrical infrastructure.
What Is a Pad Mounted Transformer?
A pad mounted transformer is a ground mounted electrical distribution transformer enclosed in a locked, tamper resistant cabinet. Designed for public spaces, it eliminates the need for protective fencing, making it ideal for residential neighborhoods, commercial complexes, and urban infrastructure.
These transformers are built with safety and accessibility in mind. All live components are sealed within a grounded steel enclosure, with cable entry from below to avoid exposed wiring. Standard features include lockable hinged doors, tamper-proof hardware, and optional baffled ventilation.
Pad-mounted transformers typically range in capacity from 15 kVA to 10000 kVA, and support both single phase and three phase configurations. Many models are equipped with internal fuses and load-break switches, and use elbow connectors compatible with hot sticks—allowing for safer and more efficient maintenance.
Compared to pole mounted transformers, which are commonly seen overhead on utility poles, pad mounted units offer a cleaner and more secure alternative, especially in regions with underground power distribution systems.
Types of Pad-Mounted Transformers
Pad-mounted transformers are classified mainly based on phase configuration and application. The two primary types are single-phase and three-phase pad-mounted transformers, each designed to meet specific energy distribution needs in residential, commercial, or industrial environments.
1. Single-Phase Pad-Mounted Transformers
Single-phase pad-mounted transformers are commonly used in residential areas to deliver power to homes and small commercial buildings. These units are typically mounted on a concrete pad and enclosed in a tamper-resistant steel cabinet, making them safe for public spaces.
-
Capacity Range: 10 kVA to 220 kVA (up to 5000 kVA in special configurations)
-
Voltage Levels: Commonly steps down from 13.8kV or 33kV to 240/120V
-
Insulating Fluids: Options include mineral oil or environmentally friendly FR3 fluid
-
Applications: Subdivisions, apartment complexes, schools, and urban areas
Single-phase units are compact, cost-effective, and easy to install where space is limited. With proper fire safety compliance, they can even be used indoors.

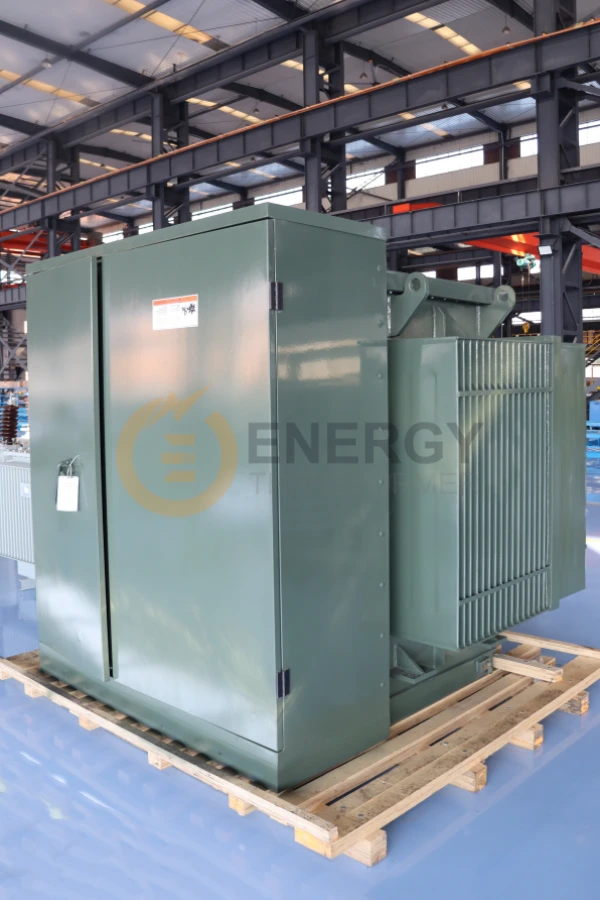

2. Three-Phase Pad-Mounted Transformers
Three-phase pad-mounted transformers are ideal for larger commercial buildings, industrial facilities, and utility networks requiring higher power capacity and balanced load distribution.
-
Capacity Range: 75 kVA to 10000 kVA
-
Voltage Levels: Commonly steps down from 33kV or 11kV to 480V/277V or 208V/120V
-
Design: Robust enclosure with bottom-entry cables, elbow connectors, and internal protection
-
Applications: Factories, data centers, shopping centers, renewable energy integration
These transformers support efficient power distribution across multiple circuits and are designed to endure outdoor environments, with customization options available for different climates and grid standards.
Pad-Mounted Transformer Core Configurations: Radial vs. Loop
Pad-mounted transformers typically feature two main design configurations: loop-type (loop feed) and radial-type (radial feed).
-
Loop-type transformers are equipped with two independent secondary bushings or winding paths, allowing them to connect to two different power sources. This setup enables redundant power supply, improving system reliability and minimizing service interruptions during maintenance or faults.
-
Radial-type transformers, on the other hand, have only one secondary winding and are connected to a single power source. While they offer a simpler and more cost-effective design, they do not provide the redundancy benefits of loop systems.
Choosing between the two depends on the criticality of the application, budget considerations, and desired level of system reliability.
Maintenance of Pad-Mounted Transformers
Regular maintenance is essential to ensure the long-term reliability, safety, and performance of pad-mounted transformers. These transformers are often installed outdoors and exposed to environmental factors, making preventive care especially important. Key maintenance practices include:
1. Oil Testing and Analysis
Many pad-mounted transformers are filled with mineral oil or fire-resistant FR3 fluid. Over time, the insulating fluid can degrade or become contaminated.
-
Test for: Moisture, acidity, dielectric strength, and dissolved gases
-
Why it matters: Maintains insulation quality and prevents internal faults or overheating
2. Visual Inspection
Routine inspections can reveal physical damage or deterioration early.
-
Check for: Oil leaks, corrosion, damaged gaskets, or signs of tampering
-
Benefit: Reduces the risk of failure and ensures safety in public-access areas
3. Thermal Scanning
Infrared scanning helps detect abnormal temperature rise caused by overloading or loose connections.
-
Non-invasive method to identify hotspots before they lead to faults
4. Cleaning and Vegetation Control
Dirt, debris, and overgrown vegetation can block ventilation and create safety hazards.
-
Maintain a clear area around the transformer to prevent overheating and fire risk
5. Testing Switchgear and Fuses
Built-in switches and protective fuses must be tested periodically to ensure proper function during faults or overloads.
-
Purpose: Ensures fast fault isolation and protects connected equipment
6. Grounding Integrity Check
Proper grounding is critical for safe operation.
-
Verify: Ground resistance, bonding connections, and overall continuity
-
Result: Reduces the risk of electric shock and equipment damage
Top Manufacturers of Pad Mounted Transformers in The World
Pad-Mounted Transformers are vital in modern power distribution systems, widely used across residential, commercial, and industrial sectors due to their safety, reliability, and ease of maintenance. Leading manufacturers in this field include:
-
Siemens (Germany)
Renowned for cutting-edge electrical technology, Siemens provides high-performance and durable pad-mounted transformers widely used in power grids worldwide. -
Schneider Electric (France)
Specializing in smart power distribution solutions, Schneider Electric offers compact pad-mounted transformers with integrated intelligent monitoring systems to enhance safety and efficiency. -
Eaton (USA)
Eaton is a leading power management company known for energy-efficient and environmentally friendly pad-mounted transformers tailored to diverse customer needs. -
ABB (Switzerland)
ABB supplies a broad range of pad-mounted transformers focused on grid reliability and energy savings, supporting sustainable energy development globally.
Energy Transformer (China) — Trusted Manufacturer of Pad-Mounted Transformers
With over 30 years of experience in the transformer industry, Energy Transformer is a leading Chinese manufacturer providing a wide range of transformers from 110kV up to 500kV. Their pad-mounted transformers are renowned for outstanding quality and reliability, certified to international standards such as ISO9001 and CE. Serving global markets including North America, Europe, and South America, Energy Transformer has built a solid reputation for dependable performance and export excellence.
Why Choose Energy Transformer?
Energy Transformer stands out by delivering a perfect blend of quality, innovation, and customer-centric services:
-
Certified Quality
All products comply with rigorous international certifications, guaranteeing durable and consistent operation under diverse conditions. -
Technological Innovation
Incorporating advanced smart monitoring and energy-efficient designs, Energy Transformer enables clients to lead in grid modernization and sustainable energy management. -
Tailored Solutions
Flexible engineering and design services allow customization to meet specific project needs and installation environments. -
Comprehensive Support
From consultation to after sales, expert technical assistance ensures smooth deployment and ongoing reliability. -
Competitive Pricing and Timely Delivery
Equipped with modern manufacturing facilities and streamlined supply chains, Energy Transformer offers superior products at competitive prices with prompt delivery schedules.
Choosing Energy Transformer means partnering with a manufacturer committed to excellence, innovation, and customer satisfaction in pad mounted transformers.
Conclusion
Pad-mounted transformers are essential components in today’s power distribution networks. They efficiently step down high-voltage electricity from the grid to safe levels for use in homes, businesses, and industrial facilities. Their robust, tamper-resistant design and low maintenance needs make them ideal for underground cable systems, ensuring reliable, safe, and uninterrupted power delivery. As a versatile solution adaptable to various environments, pad-mounted transformers continue to be a fundamental element in modern, efficient electrical infrastructure.
Frequently Asked Questions (FAQs)
What distinguishes a pad-mounted transformer from a ground-mounted transformer?
Pad-mounted transformers are securely installed on concrete pads with tamper-proof enclosures, designed specifically for underground power distribution. Ground-mounted transformers vary widely and may lack tamper-resistant features, often used in overhead or surface applications.
How close can a pad-mounted transformer be placed to a building?
Typically, utility regulations require a minimum clearance of 10 to 12 feet from any structure to ensure safety and maintenance access.
How long does it usually take to replace a pad-mounted transformer?
Replacement generally takes a few hours, depending on transformer size, site conditions, and wiring complexity.
What maintenance is required for pad-mounted transformers?
These transformers require minimal maintenance, mostly routine inspections for oil leaks, corrosion, and ensuring the enclosure remains secure and free from debris.
Are pad-mounted transformers safe for residential areas?
Yes. Their secure, tamper-proof housings and grounding reduce risks, making them safe for use in neighborhoods and public spaces.
Can pad-mounted transformers be used in harsh weather conditions?
Absolutely. They are designed with durable materials and protective coatings to withstand rain, snow, heat, and other environmental stresses.
What types of transformers are typically pad-mounted?
Distribution transformers that step down voltage from medium to low levels (e.g., 12kV to 120/240V) are commonly pad-mounted for direct service to customers.
